GIS and Spatial Analysis

Geospatial Data

Part 2: Spatial Data Structures

John Lindsay
Fall 2015

Spatial Data Structures

  • The spatial data models (i.e. raster vs vector) only exist as conceptual constructs of the way that we model and interact with geographic entities.
  • A spatial data structure refers to the way data stored on a computer are organized.
  • There are many different organization structures for either vector or raster data.

Desirable properties of a data structure

  1. Efficiency - databases should be efficient both in terms of storage requirements and speed of use
  2. Flexibility - it should be easy to perform a wide variety of operations
  3. Topology - relative spatial relationships should be present implicitly or explicitly in the data structure

Adapted from: D. Peuquet, Cartographica, Vol. 21(4), 1984.

Desirable properties of a data structure

  1. Completeness - it should include all necessary features and relationships
  2. Robustness - it should be able to accommodate special situations such as islands or lakes
  3. Compatibility – it should be easily read by GIS software, or easily convertible to another format

Adapted from: D. Peuquet, Cartographica, Vol. 21(4), 1984.

Georelational Vector Data Structures

  • Geometries and attributes stored separately in a split system.
  • Geometries are stored in a graphic file and attributes in a relational database.
  • Attribute data is linked to map features by the use of a Key or ID field.
  • Each spatial object can have any number of attributes associated with it.
  • Vectors can be related to one another through common keys in their attribute tables.
Georelational vector data Jensen and Jensen, 2013
Database relations Jensen and Jensen, 2013
one-to-many database relations
Jensen and Jensen, 2013

Georelational Vector Data Structures

  • Almost all vector data structures are georelational.
  • But this only describes the organization of geometry and attribute type data.
  • We also need to consider how to structure the geometry data itself.
  • One major consideration is whether or not to use a topological data structure.

Chain Topology

Topology in vector data structures


  • The shapefile is a standard, non-topological data format used in ESRI products (and many others!).
  • Geometries stored in .shp files, attributes stored in .dbf files, other data stored in .shx and .prj files.
  • Although originally associated with ArcView, the shapefile emerged in the 1990s as a ubiquitous vector standard for data transfer and analysis despite its limitations.
  • Shapefile treats a point as a pair of x-, y-coordinates, a line as a series of points, and a polygon as a series of line segments in a loop but no files describe the spatial relationships between these geometric objects.

Raster Data Structures

  • The real beauty of the raster model is the relative simplicity of its data structures.
  • All raster data structures are essentially an array of values with metadata used to indicate the number of rows and columns and the location of the data edges.
  • There is no need to store the location of each grid cell!
  • There are ASCII (text-based) and binary raster formats.
  • Rasters are essentially just image data and the GeoTIFF format has emerged as the de-facto standard, although not to the same extent as the shapefile.
Raster data structure
Source: Heywood et al. 2006

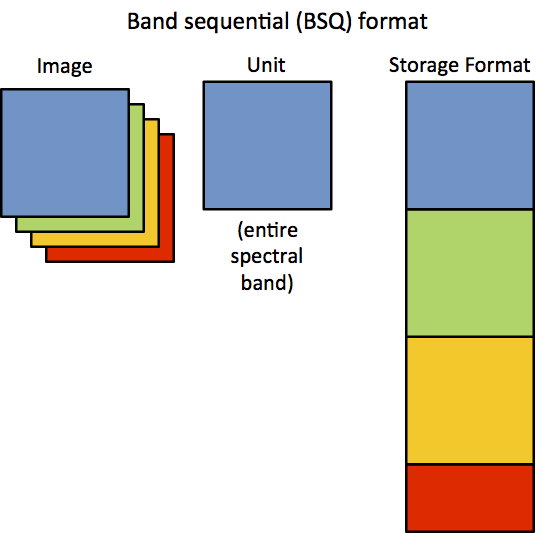

BSQ rasters

Raster Data Structures

  • Notice that each grid cell contains a single attribute.
  • The easiest way of storing multi-spec or multi-band data is to store each attribute in a separate image file.
  • There are however 'multi-band' raster data formats (including the GeoTIFF).

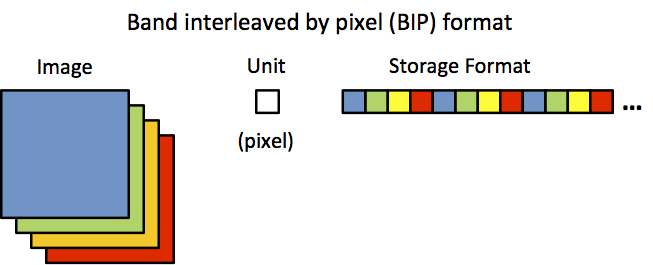

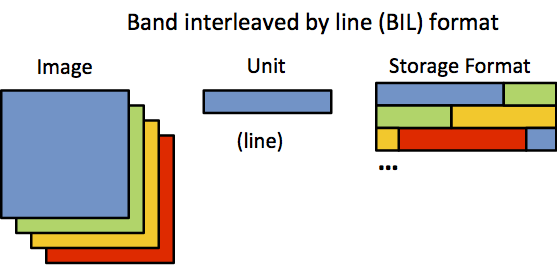

BIP rasters BIL rasters
BSQ rasters

Raster Data Compression

  • Raster data structures may also incorporate compression schemes to reduce file storage requirements.
  • One of the problems with using the raster data structure is that it results in very large files for even moderate-sized grids
  • Data compression methods are designed to reduce the redundancy in a raster data set.
  • Compression methods are either lossless or lossy.

Raster Data Compression

  • Common raster data compression methods include:
    • Run-length encoding
    • Quadtree structures
    • Wavelet compression

Run-length Encoding

Run-length encoding

Quadtree Raster Representation

Quadtree rasters
Source: GIS: A Management Perspective by S. Aronoff, 1989.

How well could each of the following rasters be compressed?

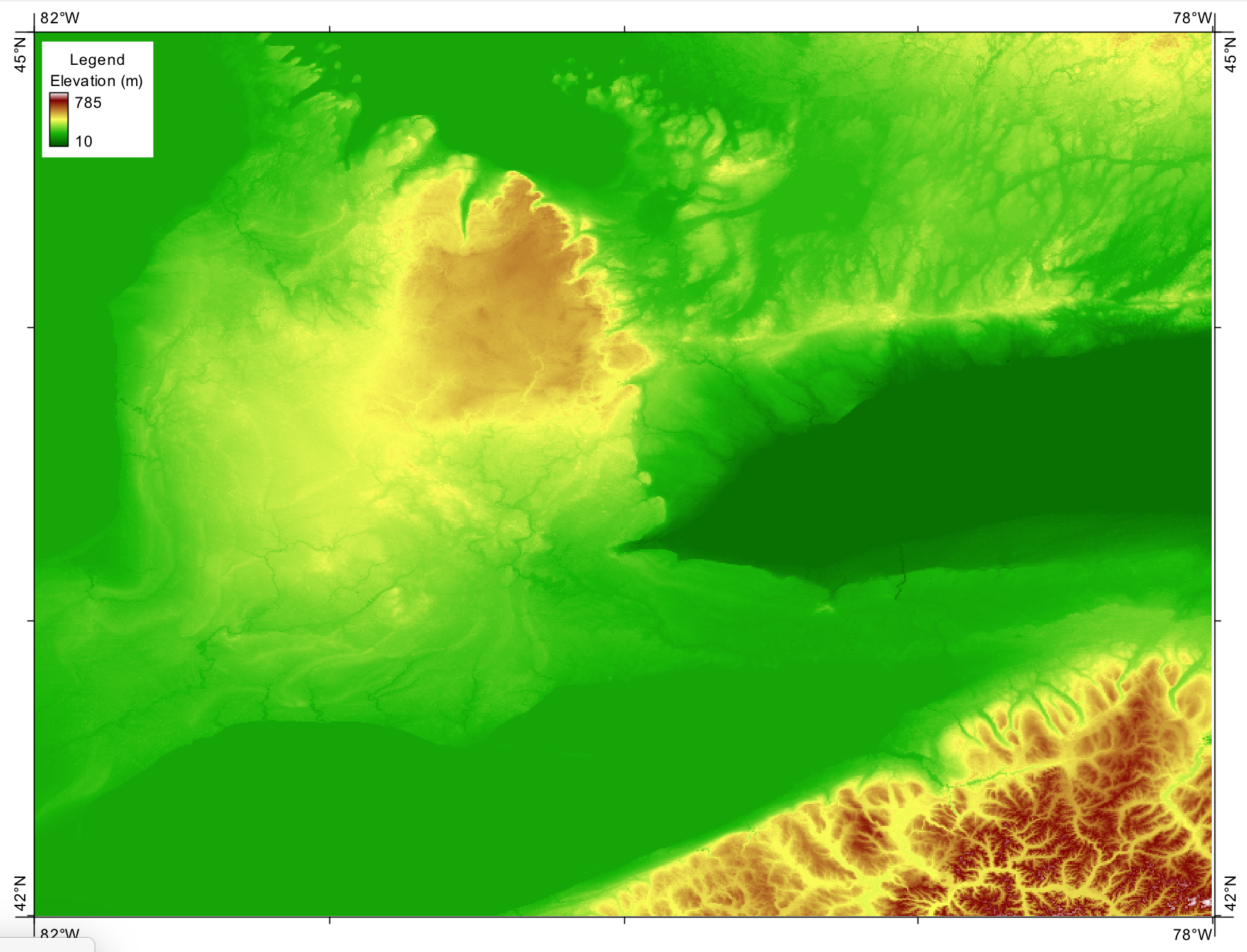

Two rasters of varying complexity
